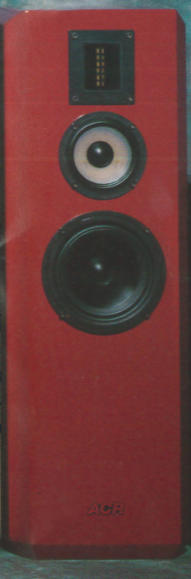

Isostatic RP 80
Stand: 10. Mai 2011  Impressum
Abmessungen BxHxT: 250 x 760 x 250 mm Nennimpedanz: 4 Ohm Schalldruck 1W/m: 90 dB Nennbelastbarkeit: 120 Watt Verbaute Chassis: Fostex FT2RP Seas HMP 12-8 Seas HTC 170 Empfohlene Verstärkerleistung: ? Gewicht: 20 Kg Frequenzbereich: 30Hz - 40KHz Trennfrequenz: 700 / 5000 Hz

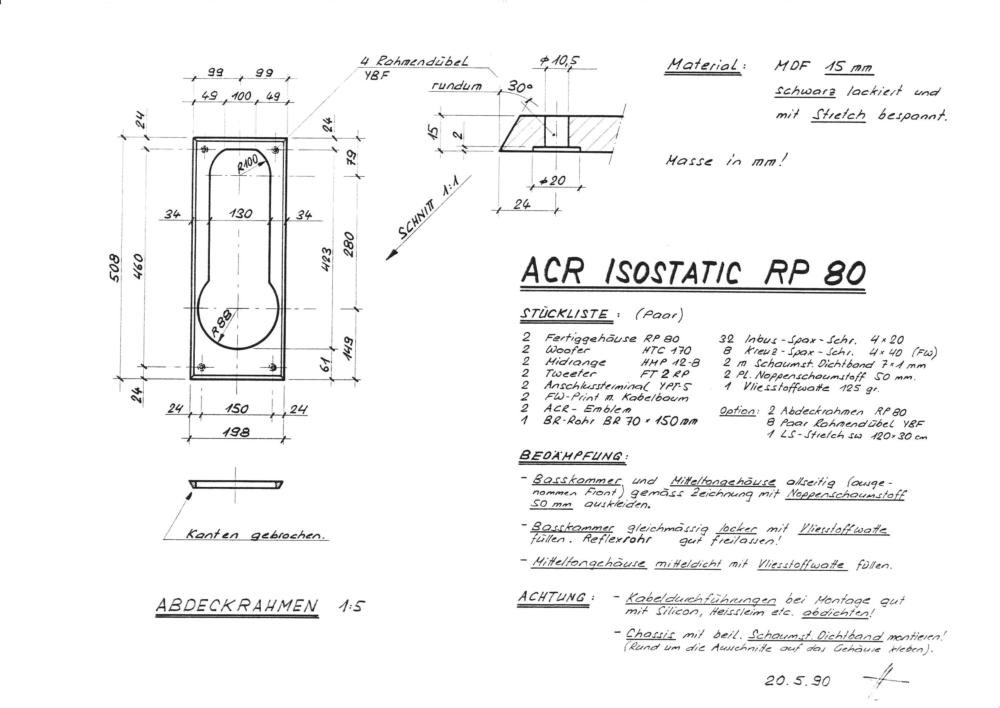

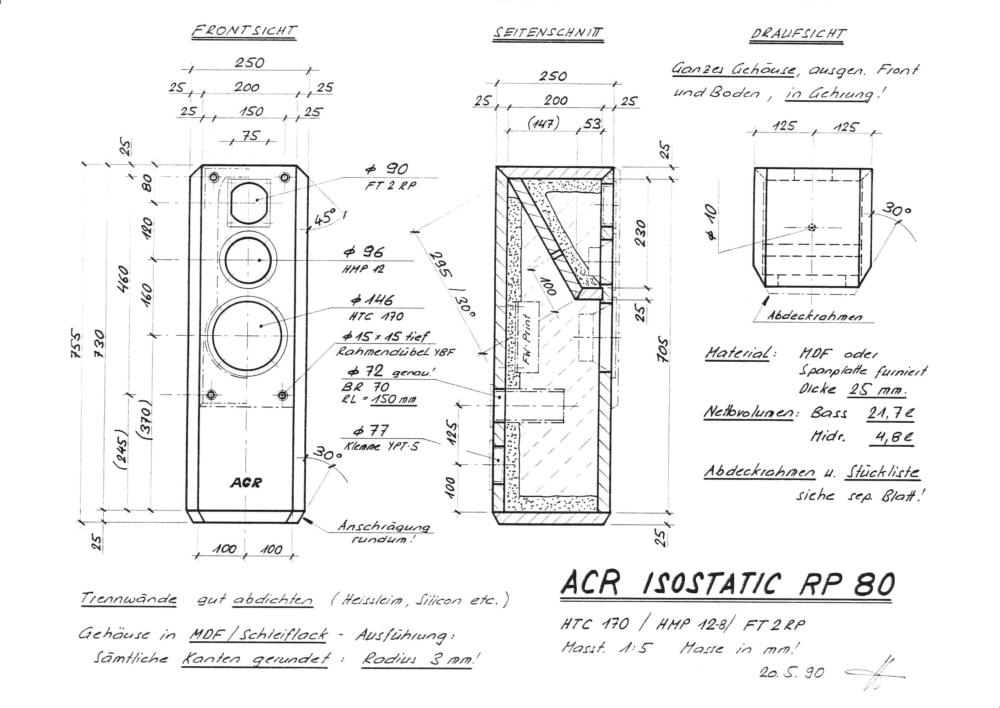

Bauplan Isostatic RP 80

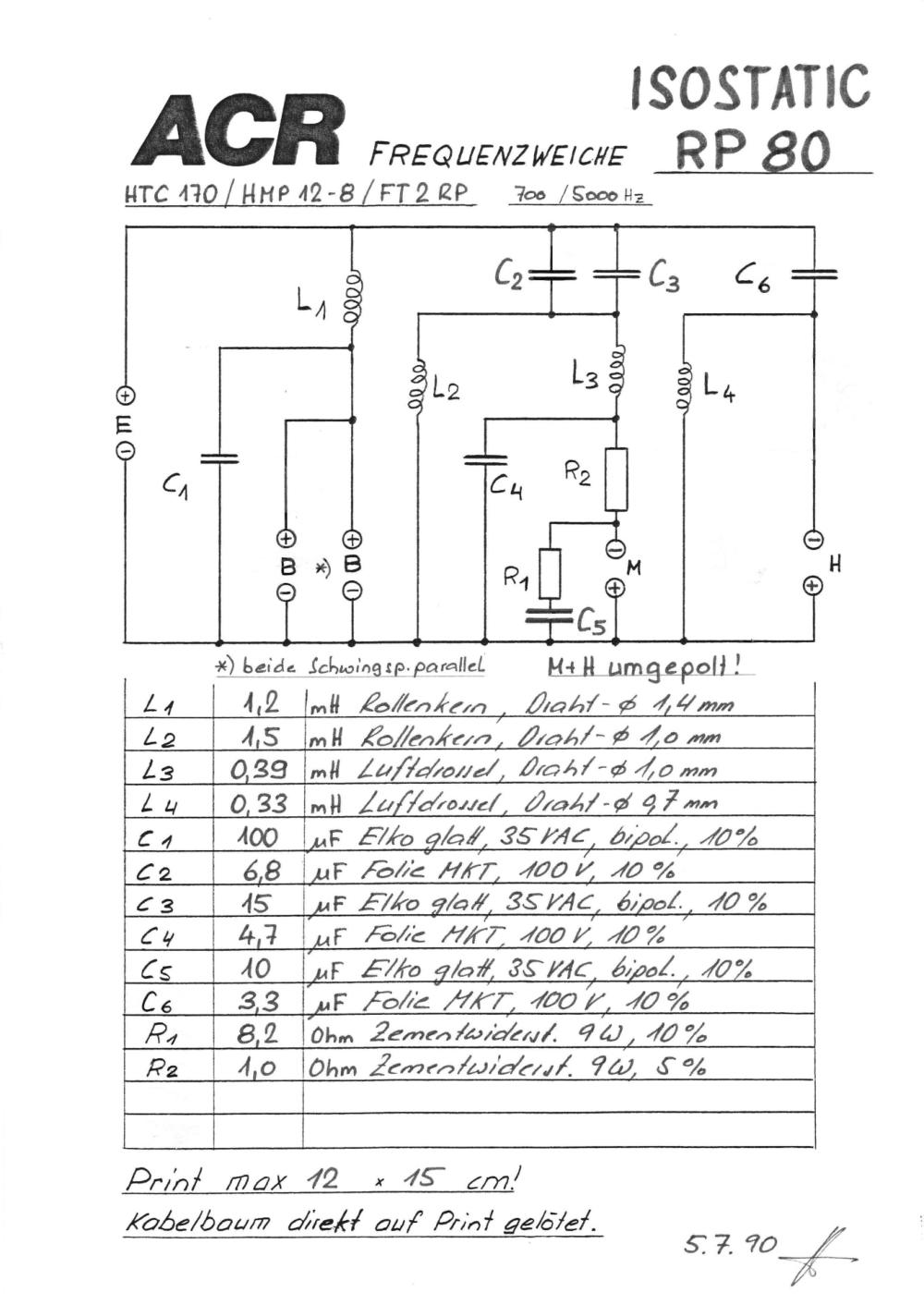

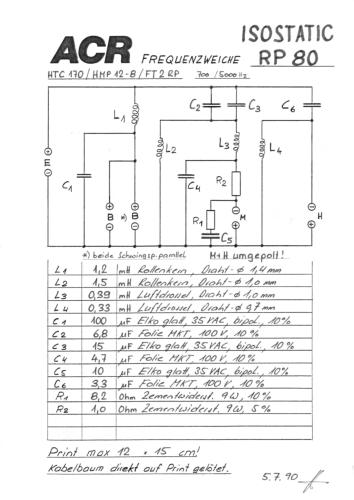

Frequenzweichenschema Isostatic RP 80.
Stand: 28. Juni 2012
Stand: 28. Juni 2012
Stand: 05.11.2020
Quelle: ACR Prospekt
